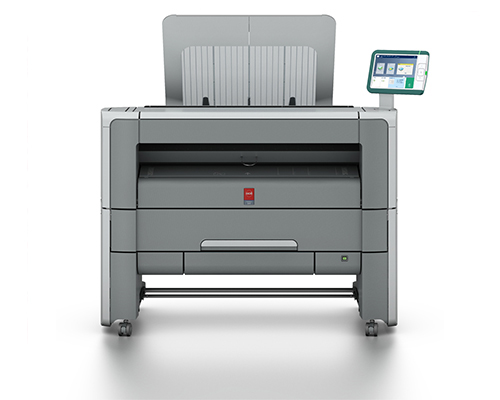

Océ Plotwave 365

  • Oce Technologies BV
  • Print Speed 6 A0 in one minutes
  • Multifunction large format printer
  • 36-inch Color Scanner
Model: Océ Plotwave 365 Manufacturer: . Rated 5/5 97

Months Varian Guaranty


Large Format Technical Document Management with Advanced Security Options

  • Highly configurable 1 or 2 roll large format printer and copier with optional integrated 600 dpi color/mono scanner.
  • The PlotWave 345 / 365 large format printer is available in a space saving single-footprint design.
  • The top delivery tray incorporates air separation technology and neatly collates and stacks up to 50 E-size plots.
  • Portfolio of security options for the printing system includes disk encryption, access management, and a removable hard drive.
Laser Plotter
Print Technology Toner LED Printer + Oce Radiant Fusing
Print Resolution 600x1200 dpi
Plot Speed 6 A1/D-Size per Minute
# Rolls 1-2 Rolls
CutSheet Manual Feed
Maximum Paper Width 91.4 cm
Maximum Roll Length 200 m
Color Scanner
Scan Technology Contact Image Sensor (CIS) Color scanner with Océ Image Logic technology
Scan Resolution 600x600 dpi
Monochrome B&W Scan Speed 14.6 M/min
Color Scan Speed 4.8 M/min
Copy Scan Speed 9.7 M/min
File Formats TIFF, PDF, PDF/A, JPEG, CALS, multi-page PDF, multi-page PDF/A, and multi-page TIFF
Scan Destinations Local USB flash drive, FTP, SMB, Smart Inbox on Controller, Optional Local Home folder (LDAP), mobile device via Océ Mobile WebTools, WebDav Cloud
Orginal Width Min: 208mm | Max: 914mm
Orginal Length Min: 208mm | Max: 16 M
Orginal Thickness 0.8 mm
Zoom 10% - 1000%
Controller
Operating System MS Windows 8 Embedded x64
Processor Intel Dual-Core G1620 @ 2.70 GHz
RAM 4GB - DDR3
Graphic Card Intel® HD Graphics, 1 GHz
HDD 500 GB, 7200 rpm (standard)
LAN Ethernet 100 Mbits/s, 1 Gbit/s
Page description language TIFF, JPEG, HPGL, HPGL2, DWF, C4, Calcomp 906/907/951, CALS, NIRS, NIFF, PS/PDF (optional)
Printing protocol LPR, FTP, WebDav, WSD print

Varian-Océ-Plotwave-365-rev1_2-min.pdf

Oce Plotwave 365 - 20180227.pdf
