Tally Dascom DL820 Label Printer

  • High Speed Printing
  • Easy Paper Loading
  • USB and Ethernet Interfaces as standard
  • Supports ZPL and EPL emulation
  • 360 m ribbon roll
  • Support of 8 inch media roll
  • LCD display for easy administration

Model: Tally Dascom DL820 Label Printer

Rated 5/5 97

Months Varian Guaranty


انبار و لجستیک

لیبل و برچسب


مچ بند بیمار و لیبل تغذیه

حمل و نقل کالا

لیبل‌های پستی

صنعت هوانوردی

بلیط و تگ بار

فروشگاه‌های زنجیره‌ای

لیبل قیمت و بارکد

کارخانجات و تولیدی ها

لیبل متال کالا

Tally Dascom DL-820 Thermal Printer

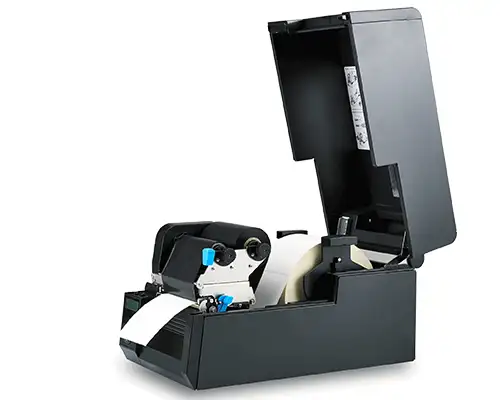

The user-friendly design of the printer facilitates a ribbon length of up to 360 metres and a roller core diameter of up to 203 mm (8 inches), meaning fewer user interventions are necessary.

In addition to the Ethernet interface, the DL-820 can also be configured with a large number of optional accessories. These make it ideal for use in many sectors, such as logistics and production or healthcare.

Label Printer
Print Method Direct Thermal or Thermal Transfer
Print Speed 203 mm/sec
Print Width 108 mm
Print Resolution 203 dpi
Media Width 19.6 - 120 mm
Media Length 8.9 - 400 mm
Media Thickness 0.06 - 0.25 mm
Media Core 1 or 3 Inch
Ribbon Width 25.4 - 114 mm
Ribbon Length 360 m
Ribbon Core 1 Inch
Flash Memory 16 MB
SDRAM Memory 64 MB
Standard Port USB 2.0 - Ethernet (10/100)
Emolutions ZPL II, EPL, TSPC
Administration DASCOM Configuration too
Sensors Black Mark, Label Gap (adjustable)
Barcode 1D 1D: Code 11, Interleaved 2-of-5, Code 39, Code 49, Code 93, Code 128. Planet Code, EAN 8, EAN 13, UPC-E, UPC-A, Industrial 2 of 5, Standard 2 of 5, Codabar, MSI, Plessy
Barcode 2D 2D: PDF 417, MaxiCode, QR Code, Data Matrix, Aztec, Codablock
Physical Weight 8.9 Kg
Physical Size 240 x 440 x 255 mm (W x D x H)
Power Voltage 100 - 240 V AC - 50/60 Hz
Print Volume 300 M

لیبل پرینتر صنعتی Tally Dascom DL820.pdf

Tally Dascom DL820 Industrial Label Printer Brochure


100% Original

With Varian Guaranty and 10 Years After Sales Service
